AIRSKIN

Quality Control Application

No Fences.   Highest speed.   Highest safety.   Shortest ROI.

_________________________________________________

Your problems:

  • Not enough qualified workers
  • Not enough floor space for automation
  • Rather simple repetitive tasks done by humans
  • Full safety for the workforce is necessary

    _________________________________________________

    AIRSKIN solution:

    • Fenceless AIRSKIN industrial robot
    • Up to 300 kg payload and 3 m reach
    • Automation on a 1 m² footprint
    • CE marked and certified with PLe / Cat.3

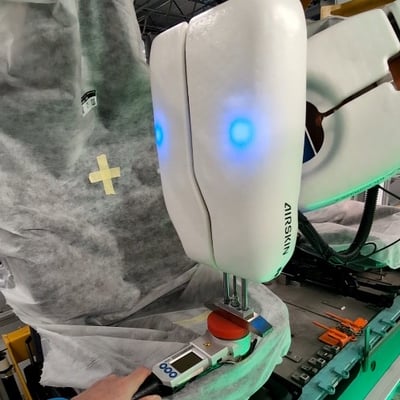

      Success Story: In-line car seat measurement at BMW Regensburg.

      Your benefits with AIRSKIN Quality Control applications:

      Speed

      Up to 6 times faster than comparable fenceless/collaborative solutions on the market

      Flexibility

      Mounted directly onto the robot for flexibility in location and task


      Space

      Removing fences and light curtains saves up to 90% of floor space than can be used otherwise


      Safety

      PL e, Cat.3 / SIL 3 certification guarantees the highest safety standard for collaborative robots



      Automate quality control right where it is needed instead of bringing the products to the control cells

      No matter the product or the space available: AIRSKIN enables fenceless quality‑control applications to be integrated directly into your production. We support you in choosing the right solution, while the implementation is carried out together with our trusted partners.

      • Payload: Up to 300 kg
      • Reach: Up to 3.1 m
      • Tools: Tactile or camera – handled by your specialists, our partners, or supported by the AIRSKIN team
      • CE-Marking: The AIRSKIN safety team can help you with your safety and even sign a full EC declaration of conformity for your application
      • Mobility: Fixed / Semi-mobile / Mobile – Depending on your tasks, the robot can stay at the same place or change place

      Semi-mobile = movable by pallet-jack
      Mobile = moving on its own

      AIRSKIN Quality Control applications currently can be realized with:

      AIRSKIN and KUKA

      • KUKA Agilus: up to 10 kg and 1.1 m
      • KUKA Cybertech: up to 24 kg and 2 m
      • KUKA Iontec: up to 70 kg and 2.5 m
      • KUKA Quantec: up to 300 kg and 3.1 m


      AIRSKIN and Stäubli:

      • TX2-60 series: up to 4.5 kg and 0.9 m
      • TX2-90 series: up to 10 kg and 1.45 m


      AIRSKIN and Epson:

      • Scaraflex: up to 6 kg and 0.7 m


      Tools for quality inspection:

      Divider

      Tactile measurement

      Visual measurement

      AIRSKIN Quality Control applications always contain the tools required for the task at hand. Regardless of whether it involves measurements with contact (tactile measurements) or measurements without contact (visual measurements): AIRSKIN’s experts will help you with:

        – Selecting the right measurement method
        – Designing and realization the quality control application together with partners
        – Complete CE marking with all the necessary documentation

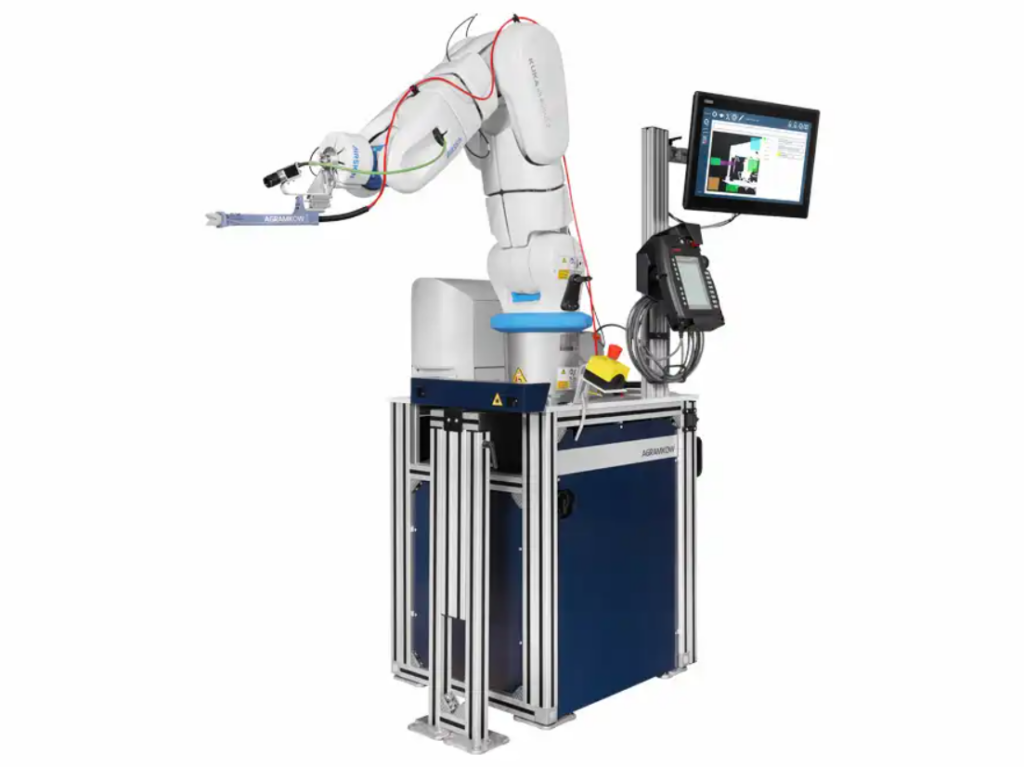

      Automated Leak Detection (ALD-360) by Agramkow

      More frequently changing product ranges, smaller batch sizes, increasing quality requirements and the shortage of skilled workers demand an automated solution for the quality control of copper tube joints.

      A KUKA Agilus-2 with AIRSKIN, Safetyflange 10 and a special 360° leakage-too mounted onto a movable trolley with a specialized software suite by Agramkow.
