AIRSKIN

Pallettizing Application

Palletizing wherever it is needed without changing the production layout.

No Fences.   Highest Flexibility.   Highest Speed.   Shortest ROI.

Your problems:

  • Human workers still palletize manually
  • Not enough floor space for fenced automation
  • Rather simple repetitive tasks done by humans
  • Full safety for the workforce is necessary

AIRSKIN solution:

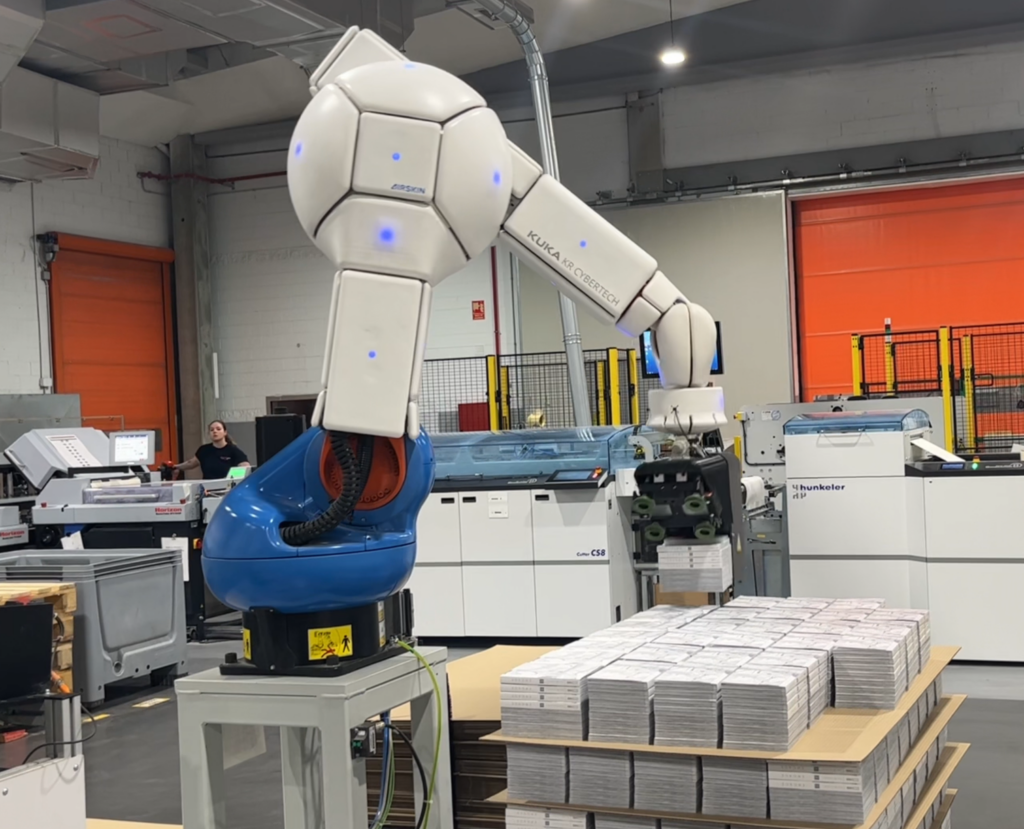

  • Fenceless AIRSKIN palletizing robot
  • Up to 300 kg payload and 3 m reach
  • End of line palletizing without fences
  • CE marked and certified with PLe / Cat.3

Flexible palletizing solutions for every payload.
High speed. Safety certified.

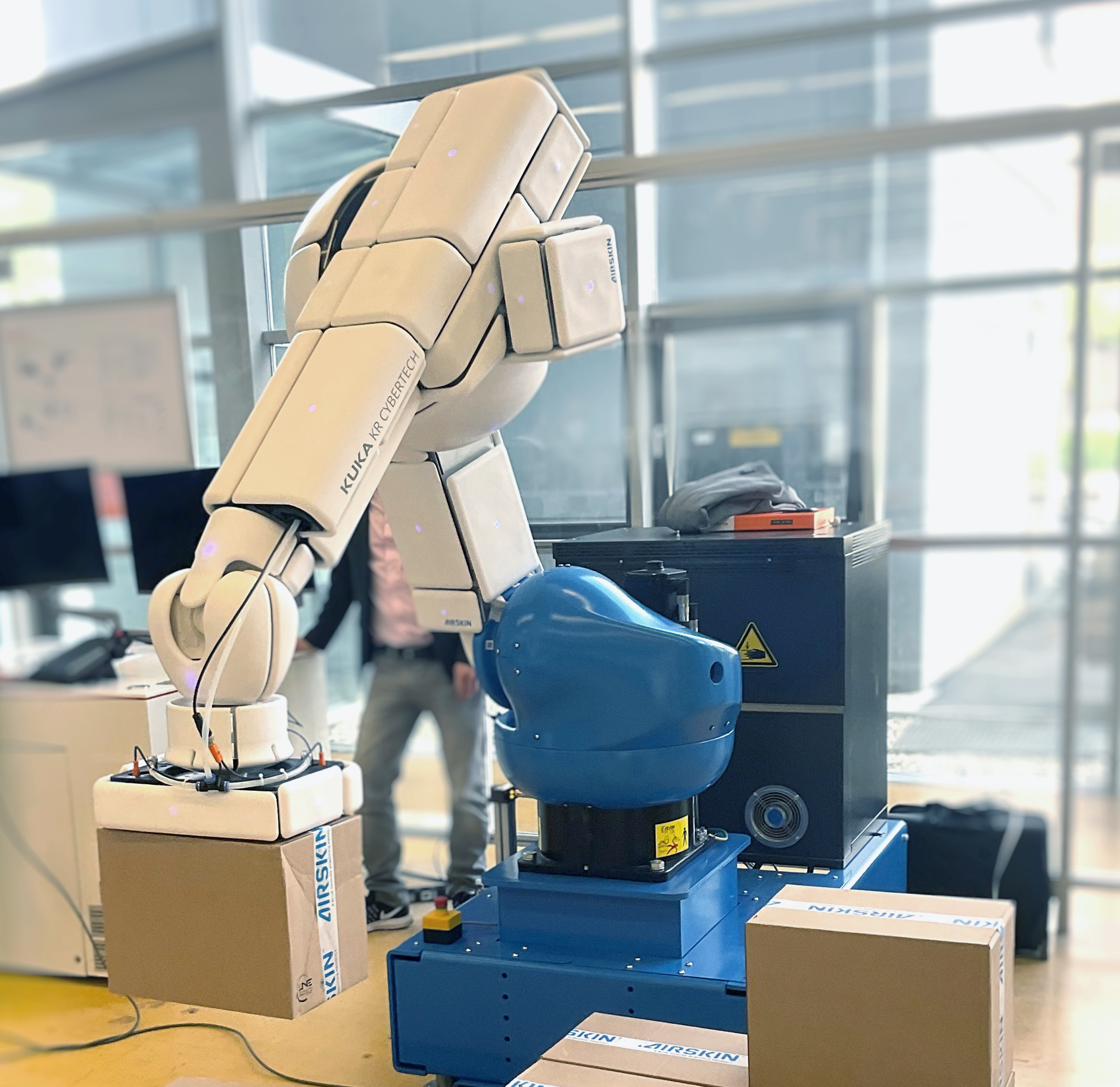

AIRSKIN and Cybertech​

Only solution in the market to palletize with high speeds up to 2 m/s, up to 10 picks/minute or up to 20 kg parcels.​

AIRSKIN and Yaskawa​

Combining AIRSKIN and the MOTOMAN GP180 handling robot offers you payload of up to 180 kg and a maximum working range of 2,702 mm with the highest safety level.

AIRSKIN and Iontec​

AIRSKIN transforms the KUKA Iontec, with a payload capacity of up to 70 kg, into a fully collaborative industrial robot and offers unparalleled flexibility, featuring the best work envelope in its class.

Solving your palletizing challenges with AIRSKIN

We cover the robot and gripper with a soft, safety-certified skin. Compliant with ISO/TS 15066 safety requirements regarding collisions, crushing & shearing. Providing you with a completely safe open format work environment for your palletizing operation.
No fence or laser scanner required. ​

Your benefits with AIRSKIN Palletizing applications:

________________________

Speed

Up to 6 times faster than comparable fenceless/ collaborative solutions on the market

________________________

Flexibility

Mounted directly onto the
robot for flexibility in location and task

________________________

Space

Removing fences and light curtains saves up to 90% of floor space than can be used otherwise

________________________

Safety

PL e, Cat.3 / SIL 3 certification guarantees the highest safety standard for collaborative robots

AIRSKIN Pick & Place applications currently can be realized with:

________________________________

AIRSKIN and KUKA:

  • KUKA Agilus: up to 10 kg and 1.1 m
  • KUKA Cybertech: up to 24 kg and 2 m
  • KUKA Iontec: up to 70 kg and 2.5 m
  • KUKA Quantec: up to 300 kg and 3.1 m

________________________________

AIRSKIN and Stäubli:

  • TX2-60 series: up to 4.5 kg and 0.9 m
  • TX2-90 series: up to 10 kg and 1.45 m

________________________________

AIRSKIN and Epson:

  • Scaraflex: up to 6 kg and 0.7 m

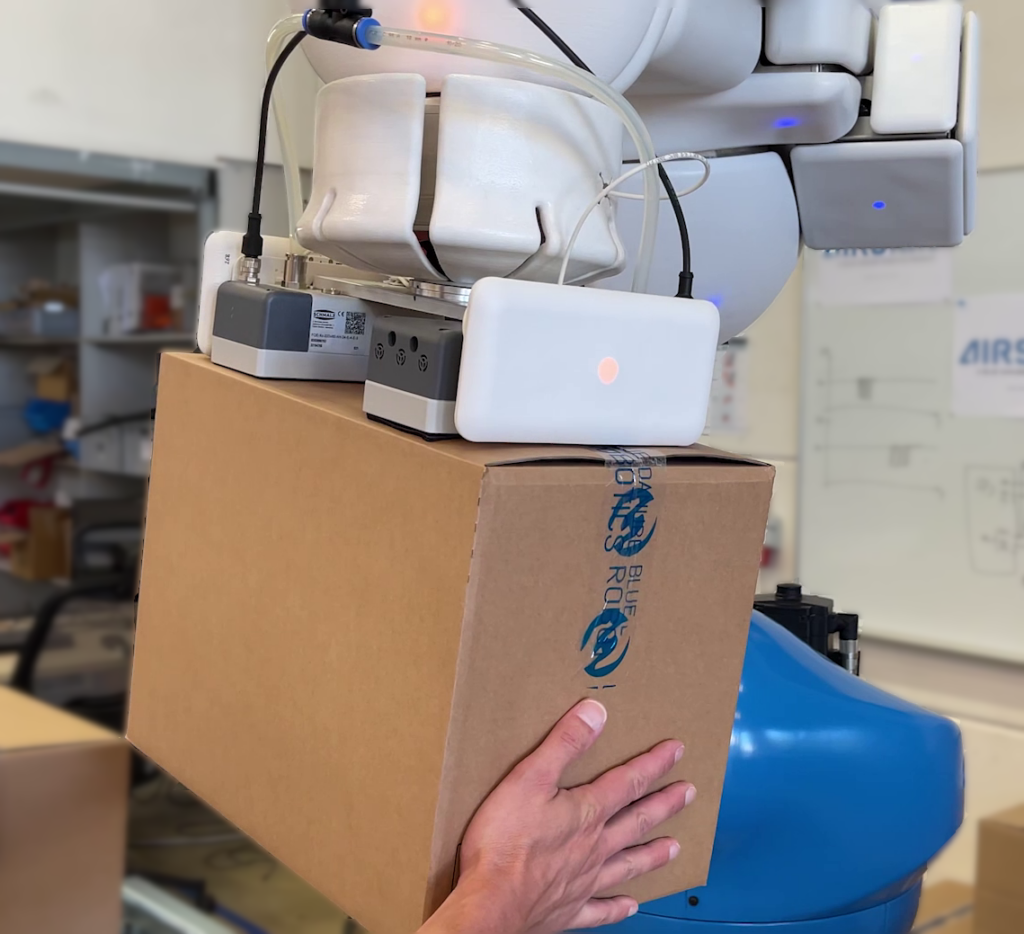

AIRSKIN Safetyflange - robotic collision sensor
The special Safetyflange for palletizing is based on the AIRSKIN technology. The Safetyflange protects the EoAT and reduces the risk of damage when picking up new objects. It also protects people from potential pinching hazards when placing objects. This also can be used to protect sensitive end of arm tooling configurations or expensive material you are handling.
Safetyflange complies with the PLe / Cat. 3 ISO 13849 safety certification.
More about Safetyflange

Features of working with the AIRSKIN team:

________________________________

Strong network

AIRSKIN is not only part of leading networks (VDMA, A3), but also cooperates with international certification bodies (TÜV, UL, CSA) and with brand names (SICK, Pilz, ...)

________________________________

Partnering

The AIRSKIN team works closely with trusted partners, integrators and distributors across Europe, America, Asia and other key regions, to ensure seamless integration and the best fenceless automation solutions for your production.

________________________________

Safety by the experts

With decades of experience in fenceless industrial automation and a CMSE (Certified Machinery Safety Expert) in every project, we guarantee the leading edge of safety Know-How.
